How to setup a Synapse SIP Trunk as well as the Inbound and Outbound routes.

Prerequisites:

Note: You need both the SIP Gateway and the Deskset phone plugged connected to the same LAN to continue.

Unbox the SIP Gateway and plug in the power and an active internet connection to the LAN port.

The Device will power on, and will go through its boot process. Once it is fully booted, it will display its IP address on the screen.

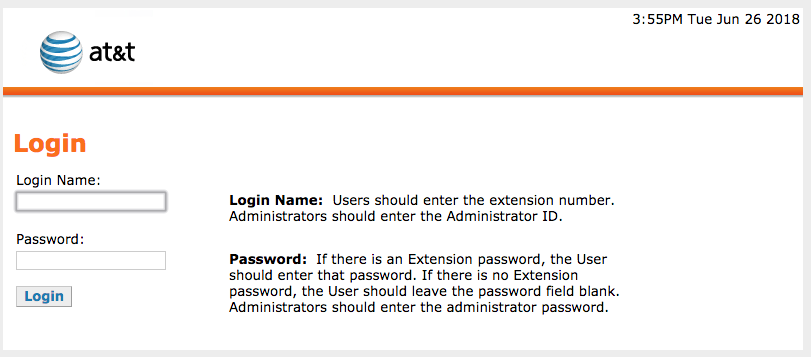

Open a web browser and input the IP address into the browser. You will be asked for a username and password.

Default username and password - admin:12345

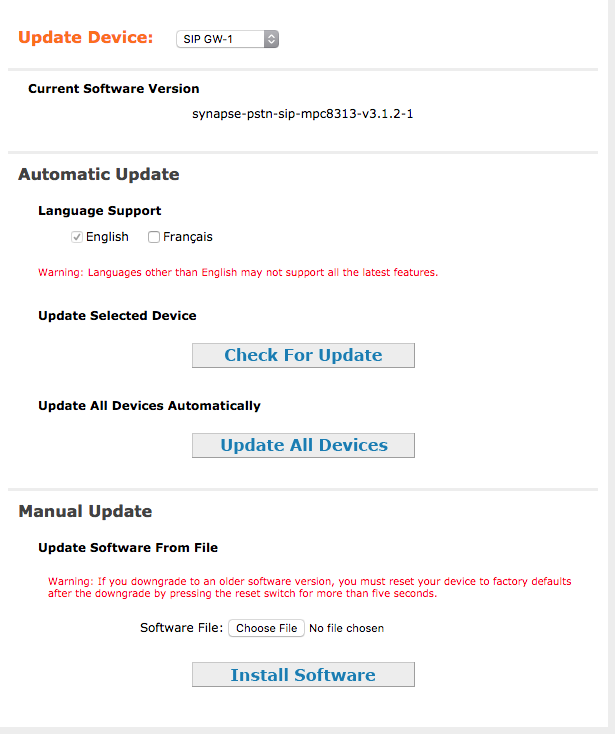

Once logged in, locate the device management and "updated device". This is where you will check for any firmware updates for the SIP Gateway and apply them.

If your screen does not look exactly like this, it is because a SIP Trunk has not been setup yet.
Once the SIP Gateway is updated, you can now setup the Deskset phone.

Plug in the Deskset Phone and go into Menu -> Deskset Information and locate the IP Address for the phone.

Open a web browser and input the IP Address to access the web GUI of the phone.

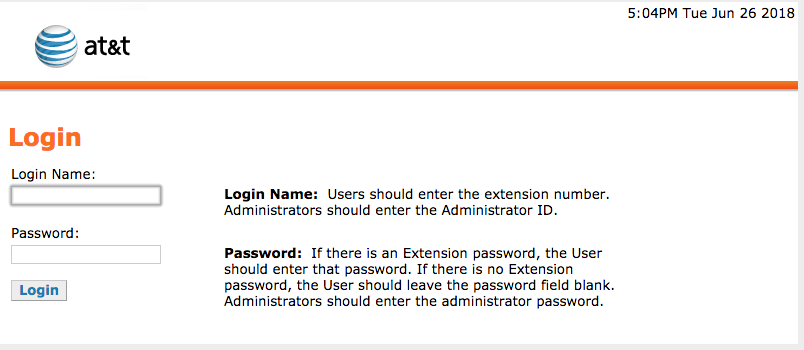

Login to the phone's admin account.

Default admin username and password - admin:12345

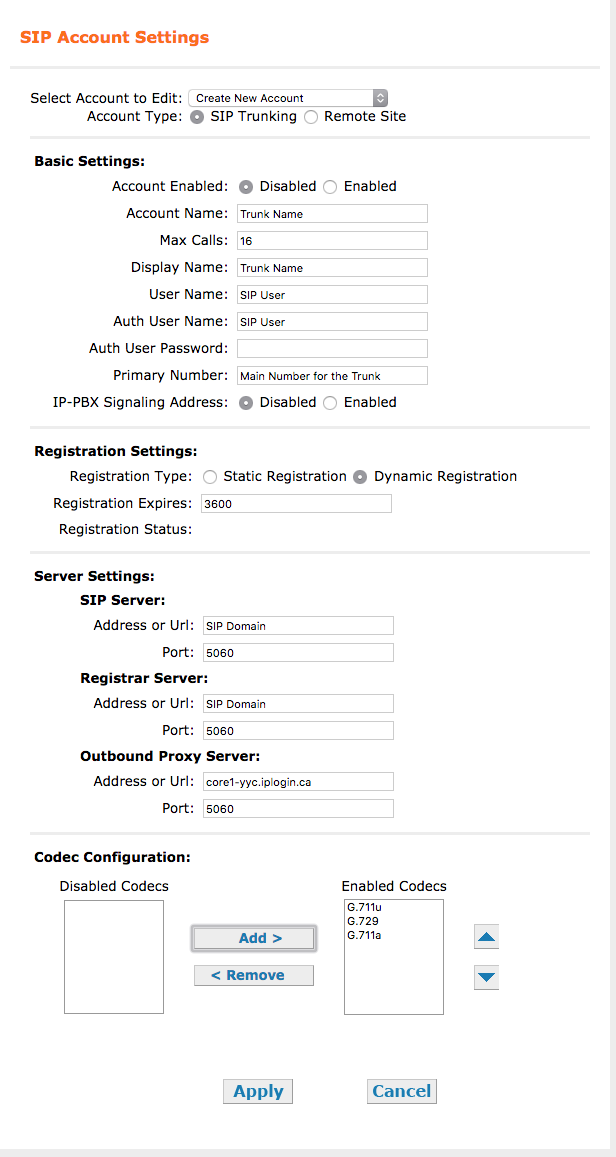

Once logged in, navigate to SIP Settings -> SIP Account Settings and enter in the following.

Auth User Password - This is the SIP Password that is provided to you
Codec Configuration - Move the following codecs to the Enabled Codecs list.
Click Apply.

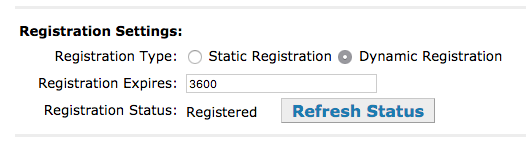

If all the information was entered correctly, you will get a Registration Status of "Registered"

If it does not say "Registered" please go back and double check that all the information is entered correctly.

Login to the Deskset IP phone web GUI.

If you have changed the default admin username and password use those credentials, otherwise use the default admin username and password - admin:12345
Once logged in navigate to System Settings - Trunk Routing. Here you will be able to select where your SIP trunk will go to. This can be a Call Queue, Auto Attendant, User Extension. For this setup, we will use a User extension.

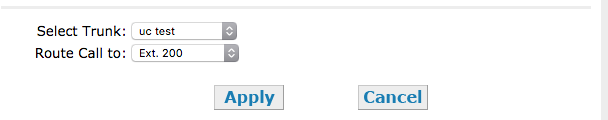

Select the Trunk you wish to route and where it will route to.

Click Apply.
Navigate to System Settings -> Direct Inward Dial -> DID Configuration. If you have multiple numbers please enter the range in "Add Direct Inward Dial Range" otherwise input the primary DID into both spots and click "Add" and then "Apply"
Your Inbound routes are now setup.

Navigate to System Settings -> Dial Plan Settings. This is where you will set your Outbound route settings for when an extension dials a number.
Set the following to the way you would like your system setup.

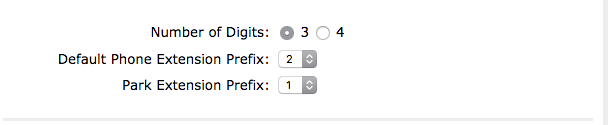

These effect how many digits the extensions will use and what digit new extensions and call parks will start with.

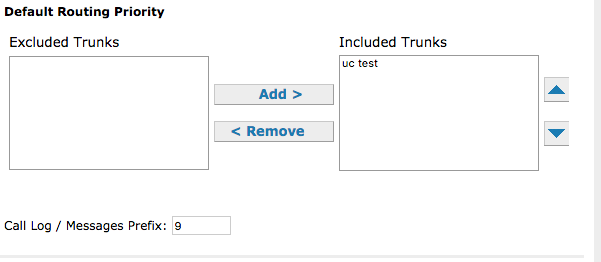

Select your trunk and move it to the "Included Trunks" list

Leave the Call Log/Messages Prefix at the default of 9

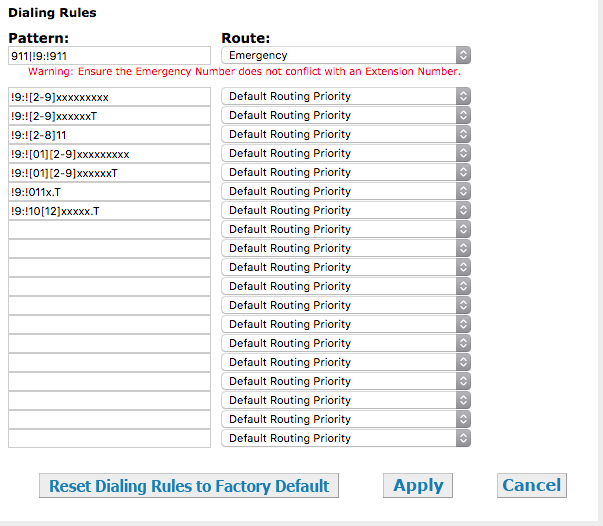

Update the Dialing Rules to match which trunk to use depending on how many digits are entered when dialing. If there is only one SIP Trunk setup, you can leave the route at its default setting of "Default Route Priority"

Note: To dial out, the user must dial 9 and then the number with the default Dial Pattern

Once this is set, click "Apply"
If everything is set up correctly, you will now be able to dial an external number. If you can not, please go back and double-check all settings are set correctly.
